Include carrier weight, accessories, monitors, or equipment mounted on shelves.
1. Support the carrier end with a Genie lift.

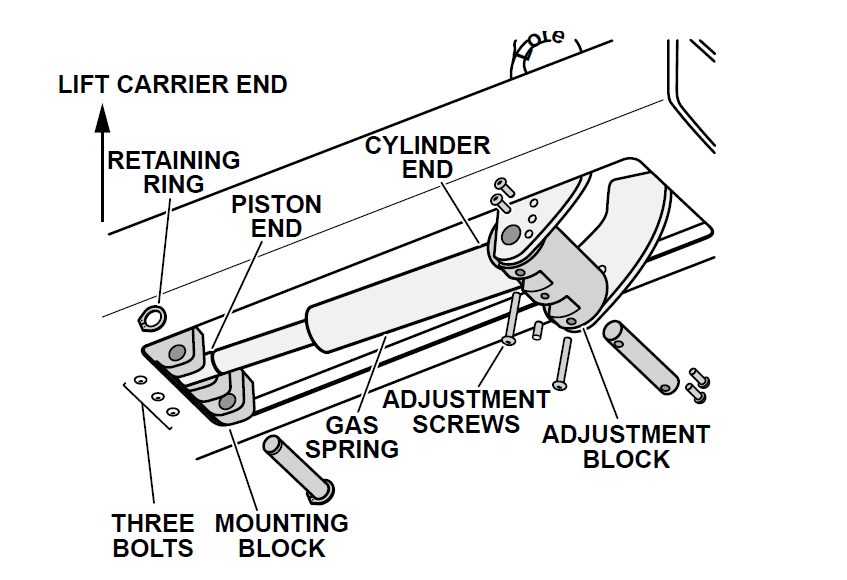

2. Remove the three bolts (Figure 17) on the carrier end of the arm.
3. Raise the carrier end of the arm. The mounting block will come out.
4. Remove the retaining ring from the pin securing the piston end, remove the pin from the mounting block (Figure 17).
