Below breaks down the different PM kit part numbers and what parts are included in each kit. Please note that the individual parts in each kit may not be set up to be sold separately.
PM KIT PART NUMBER DESCRIPTION

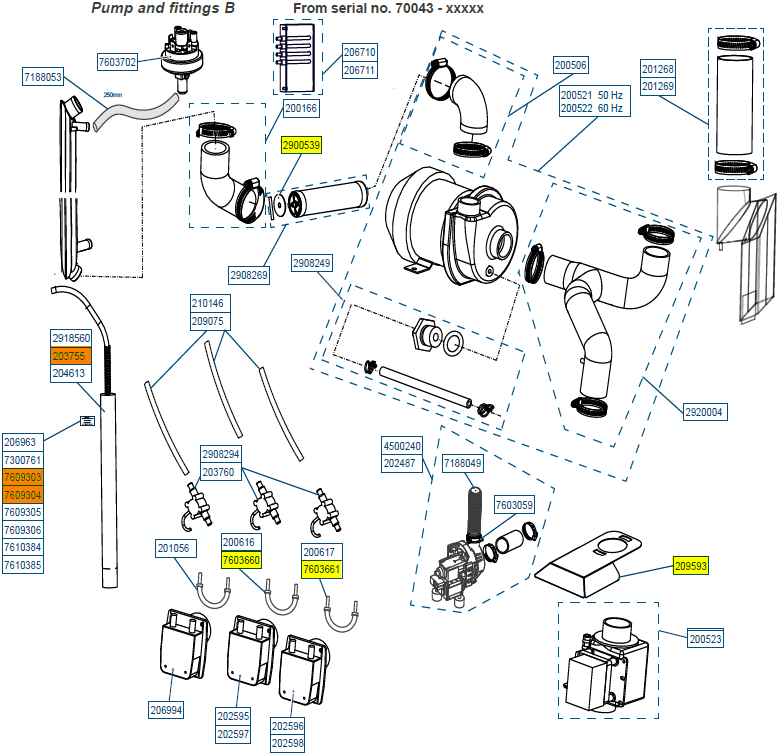

4502100 P1000 Maintenance-kit 3000 - 3000/
9000/21000/27000 Cycles
PARTS INCLUDED
204310 Membrane 3 mm, for coupling, IQ5 and IQ6 1 Pcs
209440 IQ5/IQ6 Maintenance check list 1 Pcs
209593 IQ Drain valve plastic cover 1 Pcs.
2900009 IQ Washer for sprayarm HPV PPS Ø16/6.5 x 1,0 mm 4 Pcs
2900539 IQ membrane for check valve Ø34 mm, pump 1 Pcs
7603660 Santoprene tube f/dosing pump 6,25x10,55 1 Pcs
7603661 Silicone tube f/dosing pump 6.25x10.55 1 Pcs
PM KIT PART NUMBER DESCRIPTION

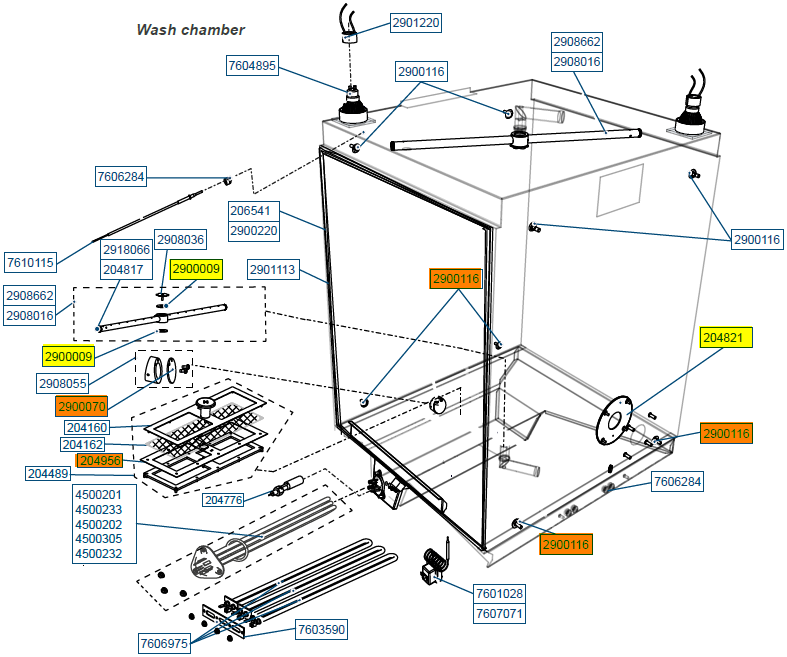

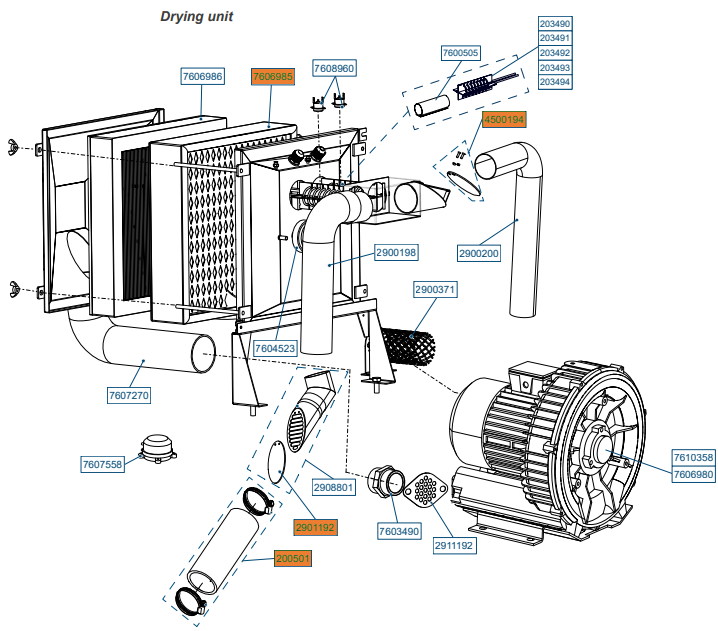

4502101 IQ5 Maintenance-kit 6000 6000/
12000/18000/24000
PARTS INCLUDED
200501 Hose kit for wash channel w/hose clamp 1 Pcs
203755 Suction lance L=355 with connector. 2 Pcs
204310 Membrane 3 mm, for coupling, IQ5 and IQ6 1 Pcs
204956 IQ4-5 gasket for mesh filter, version 2022 1 Pcs
209440 IQ5/IQ6 Maintenance check list 1 Pcs
2900009 IQ Washer for sprayarm HPV PPS Ø16/6.5 x 1,0 mm 4 Pcs
2900070 IQ Gasket for water supply 1 Pcs
2900116 IQ Plastic bumper 20x4mm 4 Pcs
2900539 IQ membrane for check valve Ø34 mm, pump 1 Pcs
2901192 IQ membrane, check valve, elbow 1 Pcs
4500194 IQ Membrane, check valve, chamber/drying module 1 Pcs
7188010 Plastic hose 5 x 8 mm PVC 2 M
7603660 Santoprene tube f/dosing pump 6,25x10,55 1 Pcs
7603661 Silicone tube f/dosing pump 6.25x10.55 1 Pcs
7606985 HEPA filter H14 305x305x68 1 Pcs
7609303 Label UL 20x47 mm UL-MH15457 Rinse Aid 1 Pcs
7609304 Label UL 20x47 mm UL-MH15457 Detergent 1 Pcs
PM KIT PART NUMBER DESCRIPTION

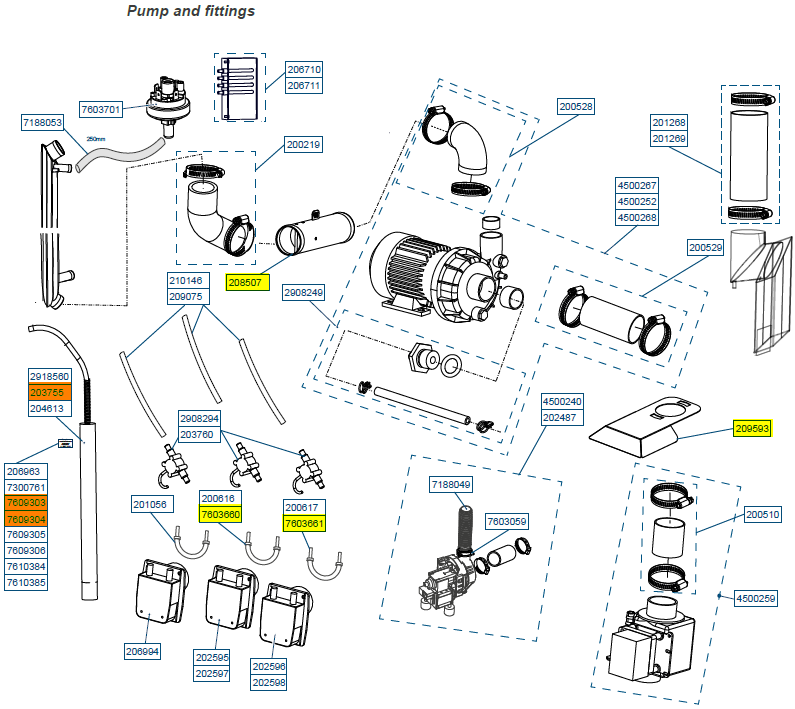

4502110 P1800 Maintenance-kit 3000 - 3000/
9000/21000/27000 Cycles
PARTS INCLUDED
208507 IQ6, Pipe with check valve, complete. (Will only be part of the kit until approx. 31/12-2025) 1 Pcs
208851 IQ6 Rack coupling kit (Will only be part of the kit until approx. 31/12-2025) 1 Pcs
209440 IQ5/IQ6 Maintenance check list 1 Pcs
209593 IQ Drain valve plastic cover 1 Pcs.
2900009 IQ Washer for sprayarm HPV PPS Ø16/6.5 x 1,0 mm 4 Pcs
7603660 Santoprene tube f/dosing pump 6,25x10,55 1 Pcs
7603661 Silicone tube f/dosing pump 6.25x10.55 1 Pcs
PM KIT PART NUMBER DESCRIPTION

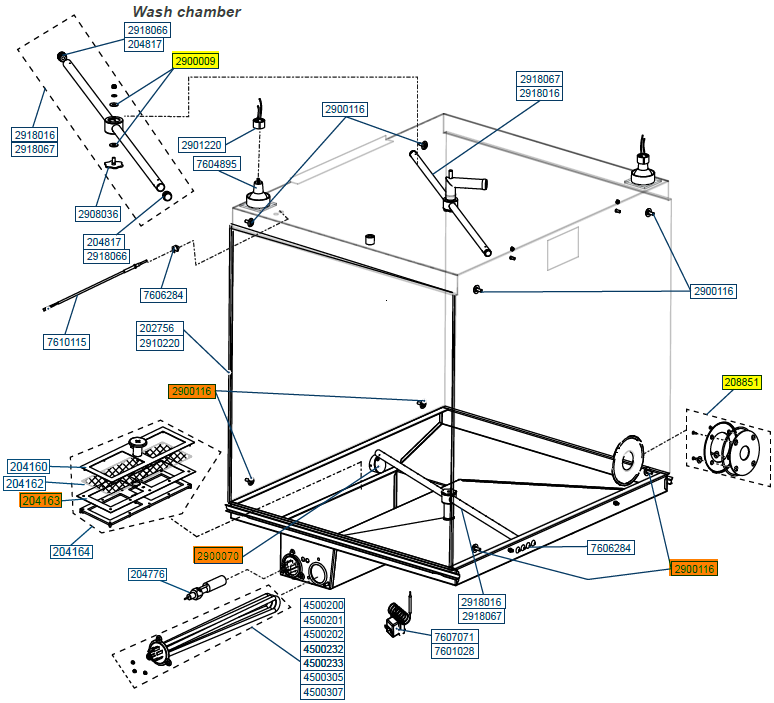

4502111 P1800 Maintenance-kit 6000 - 6000/
12000/18000/24000 Cycles
PARTS INCLUDED
200501 Hose kit for wash channel w/hose clamp 1 Pcs
203755 Suction lance L=355 with connector. 2 Pcs
204163 IQ6 gasket for mesh filter, version 2022 1 Pcs
208851 IQ6 Rack coupling kit (Will only be part of the kit until approx. 31/12-2025) 1 Pcs
209440 IQ5/IQ6 Maintenance check list 1 Pcs
2900009 IQ Washer for sprayarm HPV PPS Ø16/6.5 x 1,0 mm 4 Pcs
2900070 Check valve water inlet 1 Pcs
2900116 IQ Plastic bumper 20x4mm (lower) 4 Pcs
2901192 IQ membrane, check valve, elbow 1 Pcs
4500194 IQ Membrane, check valve, chamber/drying module 2 Pcs
7188010 Plastic hose 5 x 8 mm PVC. Connects Seko pumps – flow meters – wash chamber 2 M
7603660 Santoprene tube f/dosing pump 6,25x10,55 1 Pcs
7603661 Silicone tube f/dosing pump 6.25x10.55 1 Pcs
7606985 HEPA filter H14 305x305x68 1 Pcs
7609303 Label UL 20x47 mm UL-MH15457 Rinse Aid 1 Pcs
7609304 Label UL 20x47 mm UL-MH15457 Detergent 1 Pcs
